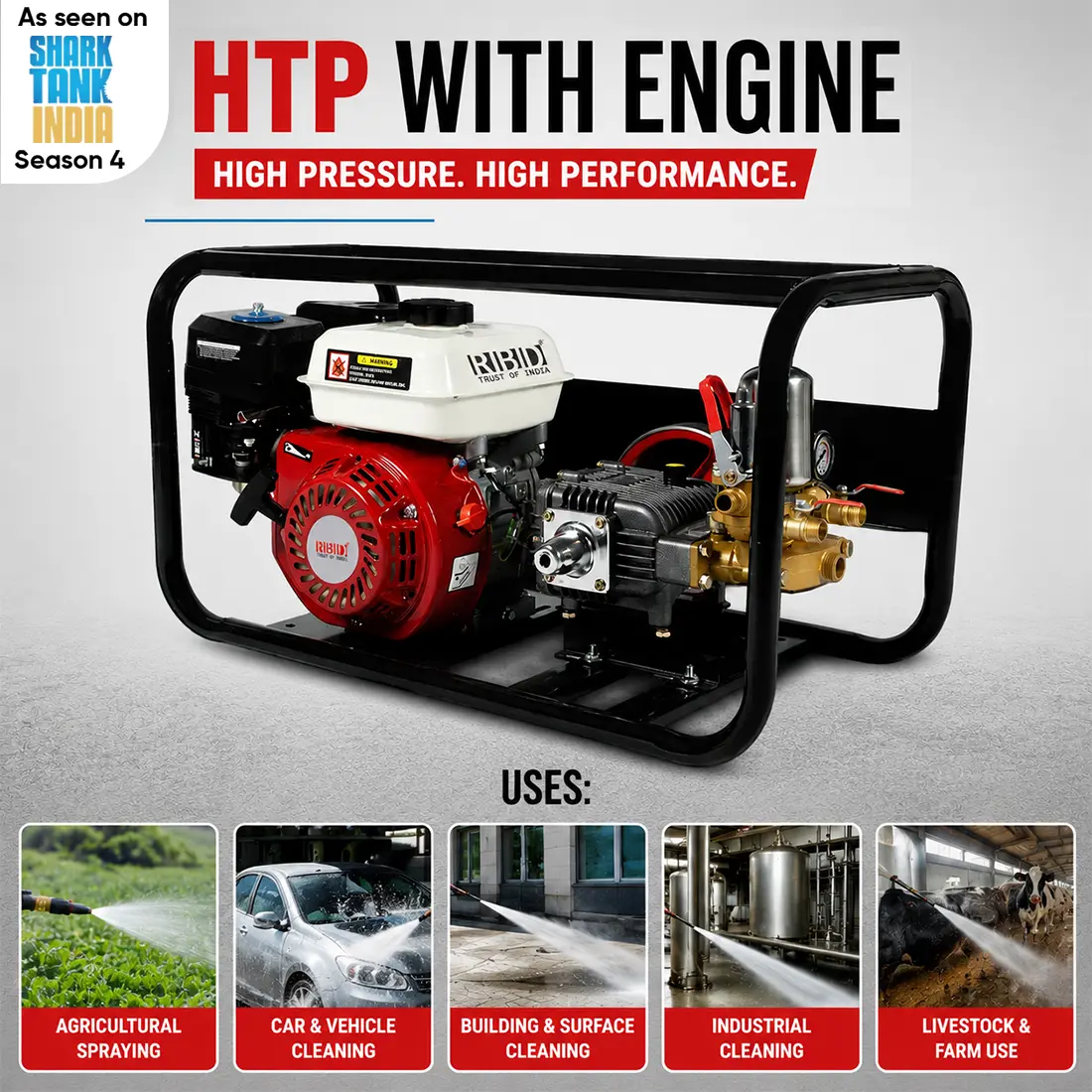

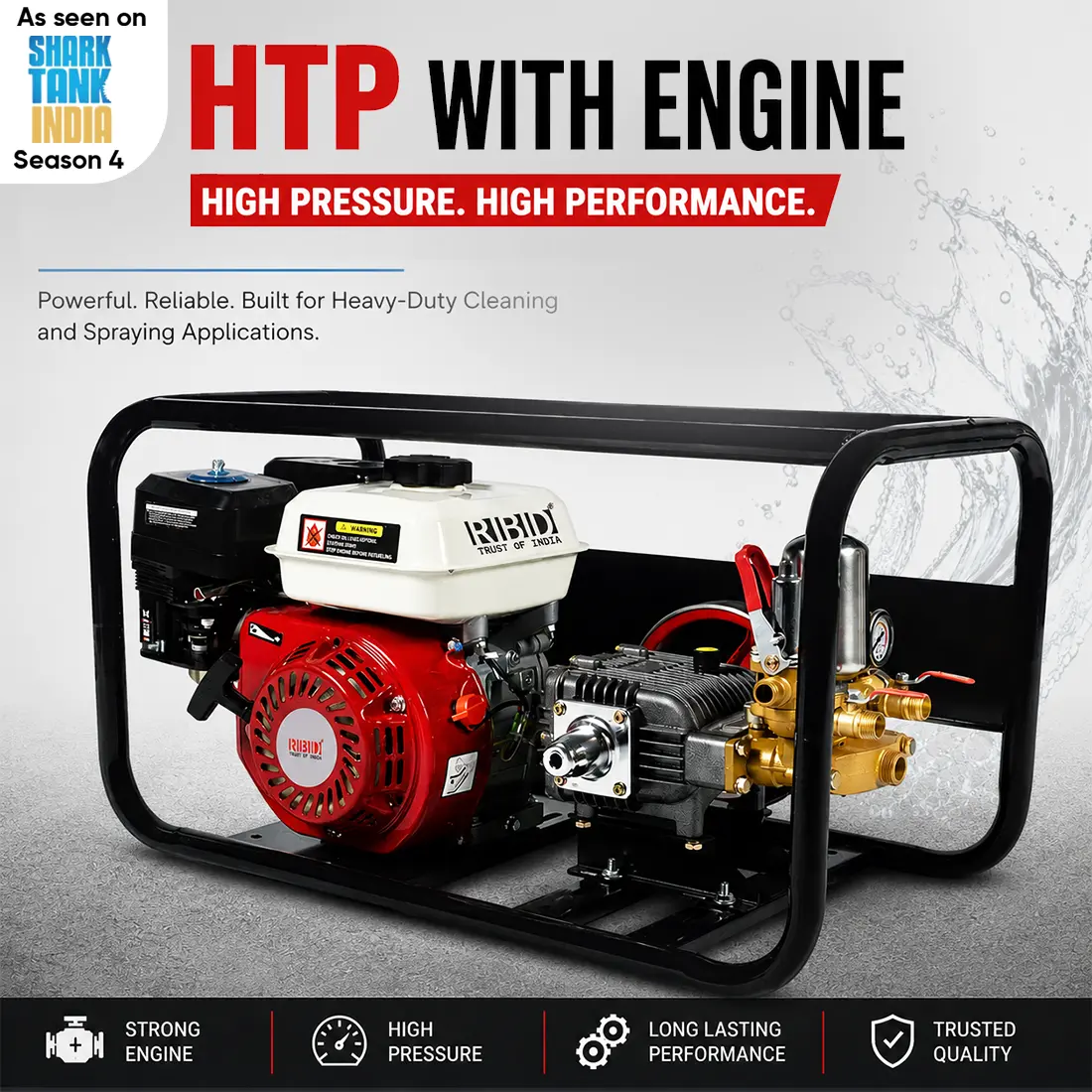

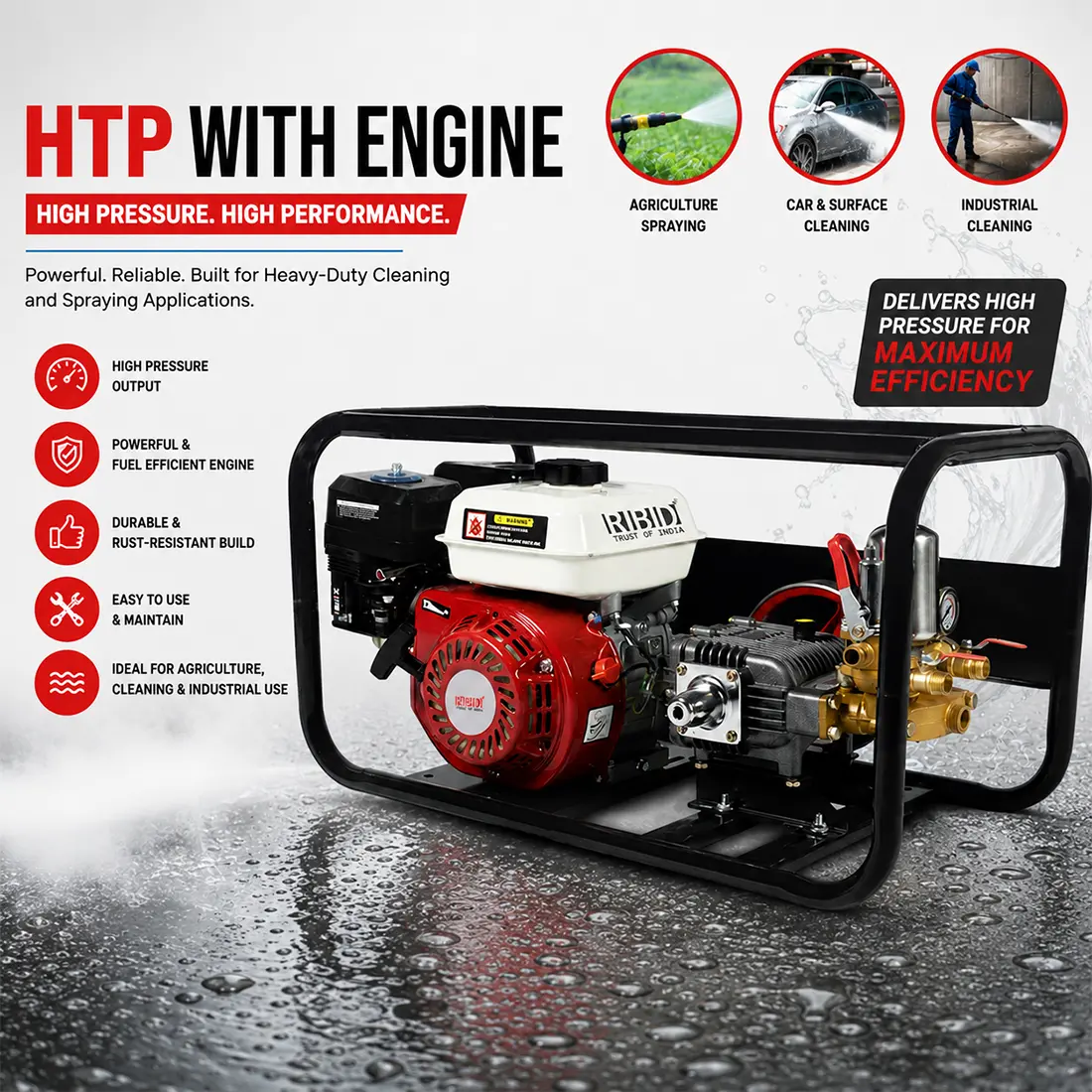

high-pressure-jet-power-sprayer-pumpRBD-30 Heavy Duty High-Pressure Power Sprayer Pump Set (6.5 HP, 212cc, 4-Stroke)

RBD-30 Heavy Duty High-Pressure Power Sprayer Pump Set (6.5 HP)

Dominate tough agricultural spraying and heavy-duty cleaning tasks with the RBD-30 Triplex Plunger Pump Set. Powered by a high-torque 6.5 HP 212cc 4-stroke petrol engine, this commercial-grade power sprayer delivers an exceptional fluid flow of up to 40 Litres Per Minute. Engineered with a rugged cast-iron body and precision brass pressure chambers, it effortlessly pushes liquids through up to 1,000 feet of hose. Whether you are protecting orchard crops, running a bustling vehicle wash station, or sanitizing industrial warehouses, the RBD-30 is your ultimate partner for high-pressure reliability.

Key Features & Benefits

Commercial-Grade 212cc Engine

Packs 6.5 HP of fuel-efficient 4-stroke power to tackle continuous, all-day operations without compromising performance.

1000-Foot Hose Range

A heavy-duty triplex plunger system provides massive pressure to drive water, pesticides, fertilizers, and cleaning solutions through ultra-long delivery hoses.

Heavy-Duty Cast Iron & Brass Construction

Features a durable cast-iron pump housing combined with premium brass pressure chambers to withstand corrosive chemicals and high operating pressures.

Multi-Chemical Compatibility

Suitable for spraying insecticides, fungicides, herbicides, liquid fertilizers, sanitizers, disinfectants, and commercial vehicle detergents.

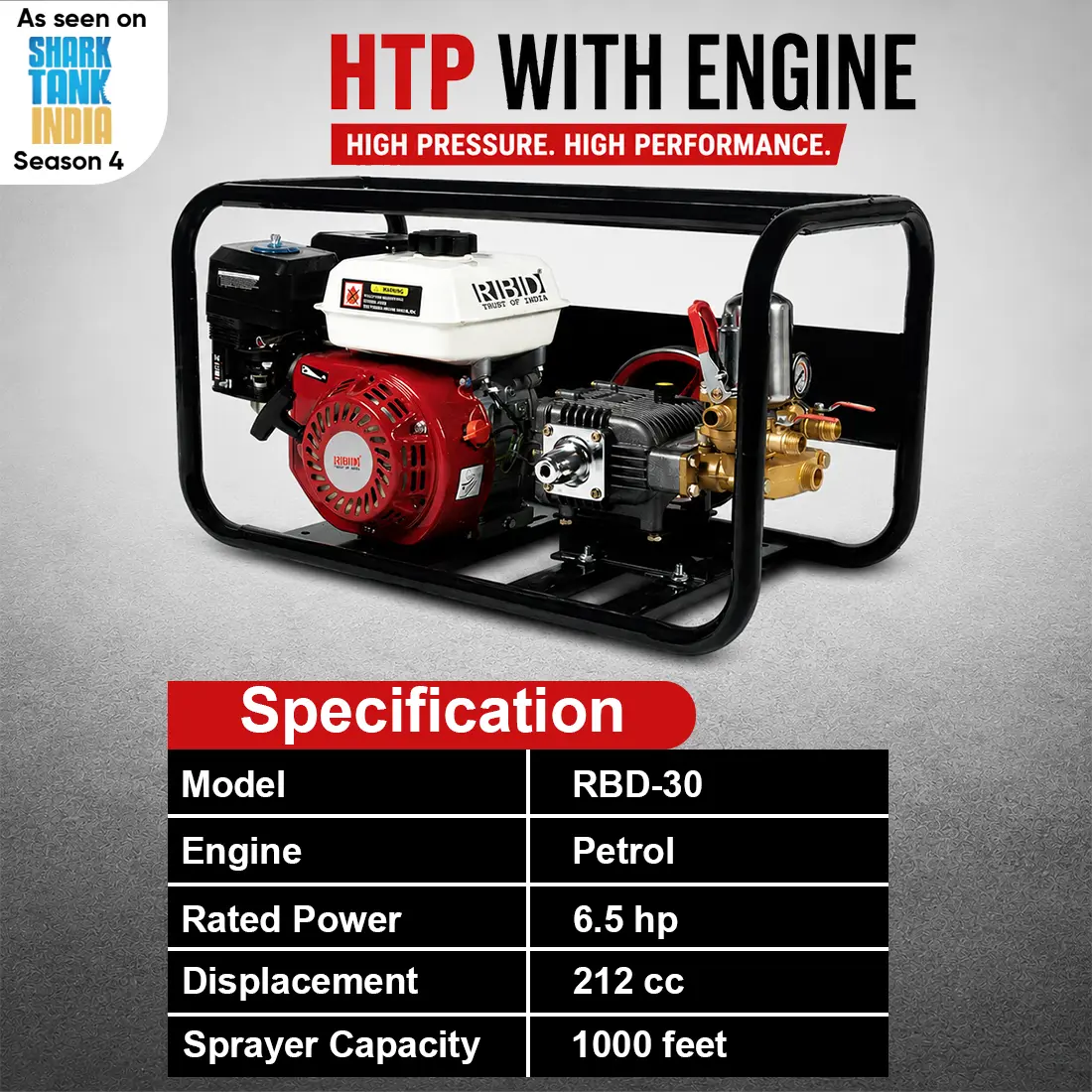

Technical Specifications

Engine Specifications

• Model: RBD-30
• Engine Type: 4-Stroke, Single Cylinder, Air-Cooled Petrol Engine
• Engine Power / Displacement: 6.5 HP / 212 cc
• Engine Oil Type & Capacity: 20W-40 or SAE 30
• Fuel Tank Capacity: 3.6 Litres (Runs on unmixed pure petrol)
• Fuel Consumption: 600ml to 1 L/hr (Depends on load)

Pump Specifications

• Pump Oil Type & Capacity: SAE 90 Gear Oil
• Maximum Pressure: 50 Bar (710 PSI)
• Working Pressure: 10 to 40 Bar (150 to 570 PSI)
• Water Flow / Suction Capacity: 30 to 40 Litres Per Minute (LPM)
• Pump / Engine RPM: Pump: 800–1200 RPM | Engine: 3600 RPM
• Hose Driving Capacity: Up to 1000 Feet (Delivery Line)
• Pump Type: Triplex (3 Stainless Steel Plungers)
• Pump Material: Cast Iron Body / Brass Pressure Chambers
• Maximum Vertical Suction Lift: 7 to 10 Metres
• Suction / Bypass Hose Diameter: 1 Inch (25 mm) Inner Diameter
• Recommended Delivery Hose Size: 8.5 mm or 10 mm Inner Diameter (M14 / M22 Thread Connections)
• Chemical Fluid pH Compatibility: Suitable for Mild Acids and Bases (pH 5.5 to 8.5)
• Machine Weight & Size: Approximately 30 kg | 62 × 38 × 45 cm
• Warranty Cover: 6 Months Limited Warranty on Engine Manufacturing Defects

Applications & Versatility

Agriculture & Horticulture

Effortlessly spray tall orchards, tea plantations, row crops, vineyards, and expansive agricultural fields with uniform coverage.

Drone Spraying Support

The high-capacity flow rate makes the RBD-30 an excellent support system for agriculture drone spraying operations by enabling rapid mixing and transfer of chemicals into drone spray tanks.

Commercial Vehicle Wash

Deliver deep-cleaning, high-pressure streams ideal for washing trucks, tractors, cars, buses, construction equipment, and commercial fleets.

Alternative to Electric Washers

Provides a heavy-duty engine-powered solution for locations where electric power is unavailable or insufficient.

Industrial & Barn Sanitation

Efficiently apply sanitizers and disinfectants in dairy farms, poultry houses, livestock barns, warehouses, and industrial facilities.

Large Area Coverage

The high-pressure output allows operators to reach difficult ceiling corners, walls, and large open spaces quickly and effectively.

Weed & Turf Management

Safely distribute herbicides and liquid fertilizers across golf courses, parks, sports grounds, and agricultural land without relying on low-capacity backpack sprayers.

What's In The Box?

• 1 × RBD-30 Heavy Duty HTP Pump Unit
• 1 × 6.5 HP 212cc Petrol Engine (Pre-mounted on a rigid steel base-frame with anti-vibration rubber mounts)
• 1 × Heavy-Duty Ribbed Suction Hose (3 Metres, 1-inch diameter with couplings)
• 1 × Weighted Strainer / Mesh Chemical Filter
• 1 × Overflow / Return Bypass Hose
• 1 × Integrated Pressure Gauge (Pre-installed)
• 1 × Engine & Pump Operator Tool Kit (Spark Plug Wrench and Adjustment Spanners)
• 1 × Comprehensive Step-by-Step User Manual

Important Note

Delivery hose pipe and spray gun are sold separately, allowing users to select hose lengths and spray accessories best suited to their application.

Operational Guide & Quick Startup

Pre-Operation Checklist

Engine Oil

Add 600 ml of 20W-40 oil to the engine crankcase before starting.

Pump Oil

Fill the pump crankcase with approximately 400 ml of SAE 90 gear oil until the indicator window reads half-full.

Fuel

Fill the fuel tank with fresh, pure unmixed petrol. Do not mix oil with petrol.

Priming

Ensure the suction hose is completely submerged in the liquid source with the weighted strainer attached. Tighten all hose couplings securely to prevent air leaks.

Starting the Machine

1. Turn the engine switch to the ON position.
2. Open the fuel valve and move the choke lever to CLOSED for cold starts.
3. Pull the recoil starter cord firmly until the engine starts.
4. Move the choke lever to OPEN as the engine warms up.
5. Adjust the throttle to achieve the desired operating speed.

Care & Maintenance Tips

Flush the System After Every Use

To maximize the operational life of the pump, always run clean water through the entire system for 2–3 minutes immediately after spraying chemicals, fertilizers, detergents, or disinfectants.

Benefits of Proper Cleaning

Regular flushing prevents corrosive chemical build up, keeps the stainless-steel plungers clean, protects seals from premature wear, and ensures long-term high-pressure performance.
